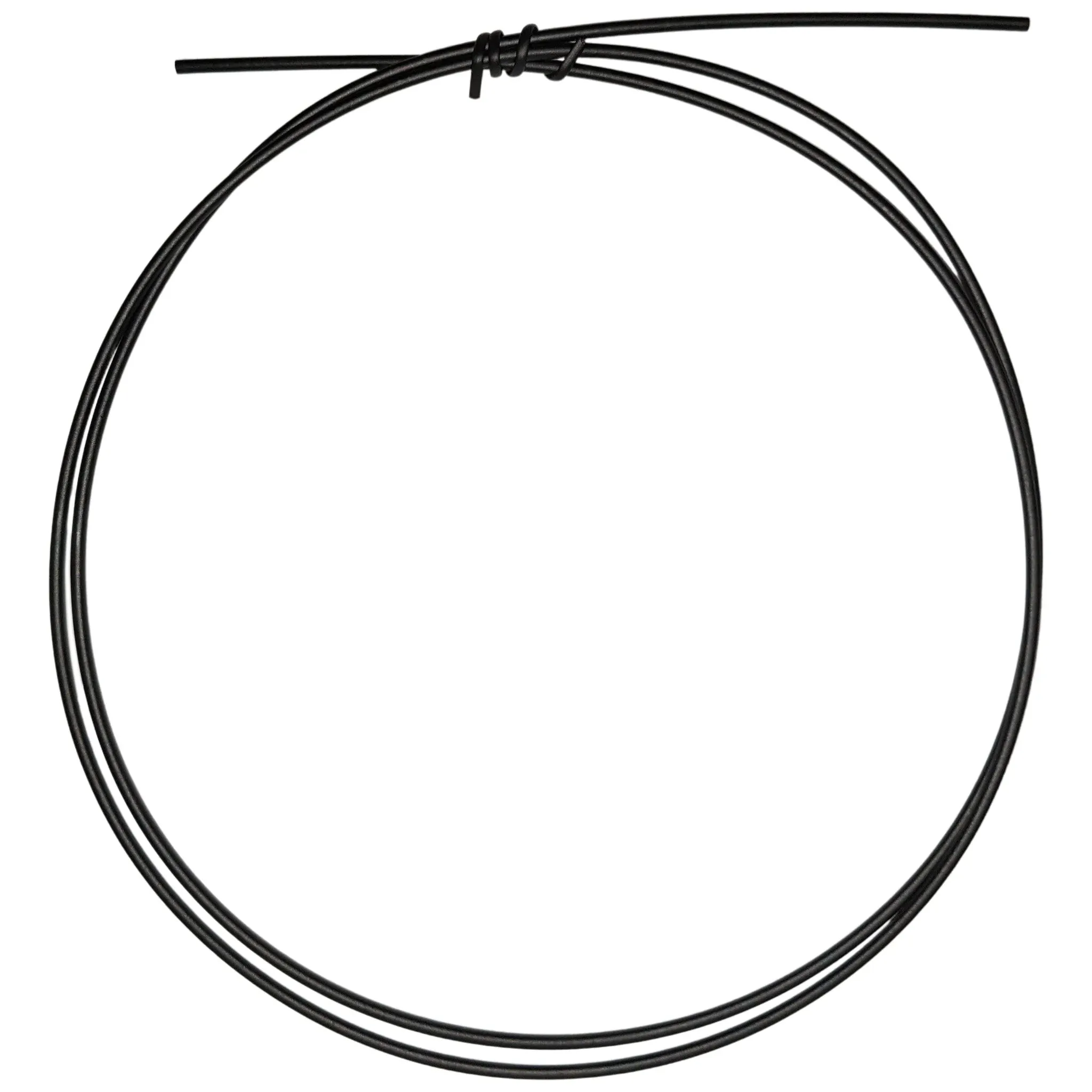

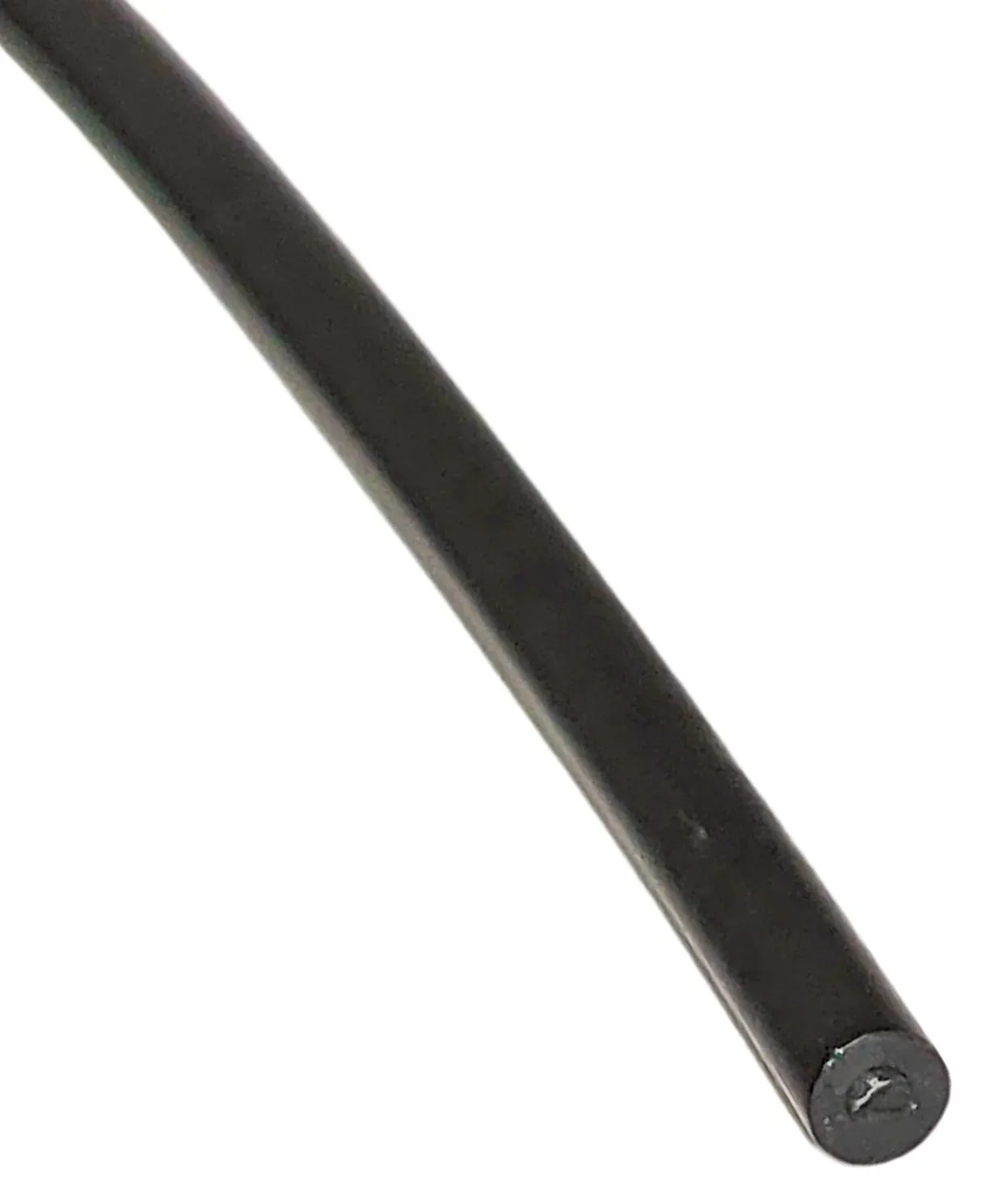

- 1 Meter Simplex Fiber Optic Cable
- Plastic µm Core
- Typical attenuation 0.2db/meter (@650nm)
Specifications:
- Core: Polymethl Methacrylate (PMMA)
- Material Cladding: Fluorinated Polymer
- Jacket: FR-PVC, PE, FR-PE
- Fiber Diameter: 1.0mm
- Cable Diameter: 2.2mm
- Structure: Step Index
- Numerical Aperture (N.A.): 0.50
- Acceptance Angle: 60 Degree
- Attenuation, dB/m @ 650nm: Under 0.20
- Allowable Bending Radius: Min. 25mm
- Available Temperature Range: –40 ~ 70°C
